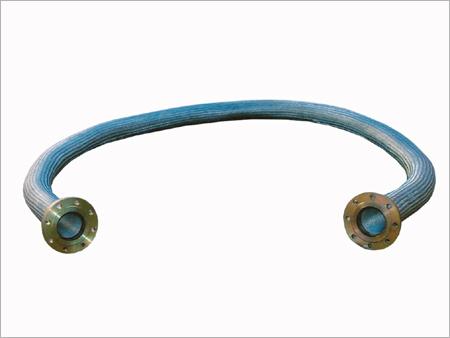

Plain PTFE Hose

Plain PTFE Hose
Plain PTFE Hose
Product Code : F-02
Brand Name : Flexo Tech
Product Description

Bestowed with dexterous professionals and modern manufacturing setup, we are serving to the specific demands of clients by offering Plain PTFE Hose. Available in different sizes, shape and diameter, this hose is suitable to ensure the leakage-free flow of liquids in various machinery and automobiles. It is manufactured under the stern guidance of our adept professionals using quality-assured polytetrafluoroethylene polymers and cutting-edge techniques in tune with international quality standards. Apart from this, the provided Plain PTFE Hose is offered to the clients at marginal prices.

Features:

  • Corrosion resistance

  • High strength

  • Durable finish standards

  • Easy installation

 SPECIFICATION:

Inner Dia

: 1/4" to 1".



6mm to 25mm in Plain Tube.



: 1" to 2"
  25mm to 50mm in Convoluted Tube.

Inner Core Material

: PTFE

Working Temperature

: -54 ºC to + 232 ºC

External Braiding

: SS 304.

Fitting Material

: Carbon Steel, SS 304 or SS 316.

Fitting

: Fixed Male Straight .



: Female Swivel Straight or Elbow.



: Flanges Fixed or Rotating.



: Stub ends for Welding.



: Cam lock Couplings.

Length

: 0.2 Metre to 50 Metres.



PLAIN PTFE FLEXIBLE HOSES
DN Wall Thk Int.Dia Ext.Dia Pressure at 20ºC kg/cm² Min. Bend Radius
mm inches mm mm mm Working Min. Burst mm

5

3/16" 0.7 5 7.6 203 810 55
6 1/4" 0.7 6.35 8.8 169 675 75
8 5/16" 0.7 8 11 144 576 100
13 1/2" 0.7 12.7 15.7 113 450 125
16 5/8" 0.9 16 19.3 104 414 150
20 3/4" 0.9 19 22.2 81 324 200
25 1" 1 25.4 29.1 63 252 300

CONVOLUTED PTFE HOSES

Type DN Min.mm Max.mm Wall Thk mm External Diameter Min. Bend Radius in mm Max Working Pressure in kg/cm² Min. Burst Pressure in kg/cm²
Min. mm Max. mm
CLWB 1 25,5 26,5 1,10 33 34,5 89 45 190
TWB 1-1/4 31,5 32,5 - 38 39,4 150 64 256
TWB 1-1/2 38 39 - 44,5 45,9 200 53 212
TWB 2 50,8 51,6 - 57 59,4 250 37 140
